1.1   Processing calibration products¶

This is currently done via the processCalibrationProducts command, which expected a directory containing the raw calibration data. Instead, the butler instances hosting the data will also contain processed calibration products suitable for all exposures. This will have to be carefully managed by observatory personnel over time, but is a much more suitable approach than leaving the MTAOS in charge of the process.

1.2   Image ingestion¶

As part of the wavefront processing commands, the current version of the MTAOS receive files names and directory location. This data is initially ingested to a butler instance to allow them to be ISR corrected and later WEP processed.

Since the data will now be ingested by a different component and will be made available to the MTAOS through butler, there is no more need for a local ingestion.

1.3   Source selection command¶

In most cases, we will know the coordinates of the next visit field ahead of time. That means some pre-processing activities can be done in parallel, while the telescope slews and the image is acquired. One of these processes is to prepare a list of suitable targets for wavefront sensing.

This could be done by adding a command that would cause the MTAOS to run the source selection routine. The command payload would minimally be;

• RA: Right ascension of the field (in hours).
• Dec: Declination of the field (in degrees).
• PA: Position angle (in degrees).
• filter: The filter used for the observation.
• mode: An enumeration specifying the wfs mode; corner, full array, etc.

Issuing the command would look something like:

from lsst.ts.wep import CamType

# Select sources for Main Camera Corner wavefront sensor mode
await mtaos.cmd_selectSources.set_start(ra=14., dec=-10., pa=0., filter="r", type=CamType.LsstFamCam)

# Select sources for Main Camera Full array mode
await mtaos.cmd_selectSources.set_start(ra=14., dec=-10., pa=0., filter="r", type=CamType.LsstCam)

# Select sources for ComCam mode
await mtaos.cmd_selectSources.set_start(ra=14., dec=-10., pa=0., filter="r", type=CamType.ComCam)

1.4   Simplification of wfs process commands¶

As mentioned above, the wfs process commands receives file names and path. With the data already ingested in the butler the images can be uniquely identified by the dataId entry in the database. That means, all process commands need to be updated to receive the dataId instead of the files name and path.

At the same time, most of the metadata that is now passed as part of the process commands (fieldRA, fieldDEC, filter, cameraRotation) is also available as metadata in the butler and can be removed from the command payload.

Furthermore, through the dataId one can identify the source of the image (ComCam or LSSTCam), so there is no need for special commands for each one of them.

At the same time, we can differentiate between an Intra/Extra wavefront analysis process and a corner wavefront sensors by the input alone. If only one input dataId then it can be assumed to be a corner wavefront sensor run. If, in addition to dataId an extraId is given, it can be considered and Intra/Extra wavefront process.

The command would be used as follows:

from lsst.ts import salobj

d = salobj.Domain()

mtaos = salobj.Remote(d, "MTAOS")

await mtaos.start_task

# Process full array intra/extra focal images.
# Frames can be ComCam or LSSTCam
await mtaos.cmd_runWEP.set_start(
    dataId=2020103000040, extraId=2020103000041
)

# Process corner wavefront sensor
# Frames should be LSSTCam only. If ComCam command will raise an exception.
await mtaos.cmd_runWEP.set_start(
    dataId=2020103000040
)

1.5   Pre-processing frames¶

While obtaining Intra/Extra focal images for ComCam or Main Camera full array, one would have the first image ready while the second is exposing. That means, it would be possible to get ahead and start the pre-processing of those frames (e.g. ISR).

This could be accomplished by adding a preProcess command to the MTAOS, which would take care of that initial step. The command would only need to know the dataId of the frame to process, e.g.;

await mtaos.cmd_preProcess.set_start(dataId=2020103000040)

With all this considered, an Intra/Extra focus sequence with ComCam could be done like:

import asyncio
from lsst.ts import salobj
from lsst.ts.observatory.control.maintel import MTCS, ComCam

domain = salobj.Domain()

mtcs = MTCS(domain=domain)
comcam = ComCam(domain=domain)

asyncio.gather(mtcs.start_task, comcam.start_task)

# slew/track target
await mtcs.slew_icrs(ra=14., dec=-10., rot=0.)

# Select sources for processing in the background
select_sources_task = asyncio.create_task(
  mtcs.rem.mtaos.cmd_selectSources.set_start(
      ra=14.,
      dec=-10.,
      pa=0.,
      type=CamType.ComCam
    )
  )

# piston camera hexapod
await mtcs.rem.hexapod_1.cmd_move.set_start(z=1000.)

# take first exposure
data_id_1 = await comcam.take_eng(exptime=30)

# piston hexapod
await mtcs.rem.hexapod_1.cmd_move.set_start(z=-1000.)

# tell MTAOS to start processing first image in the background
preproc_task_1 = asyncio.create_task(mtcs.rem.mtaos.cmd_preProcess.set_start(dataId=data_id_1))

# take second exposure
data_id_2 = await comcam.take_eng(exptime=30)

# tell MTAOS to start processing second image in the background
preproc_task_2 = asyncio.create_task(mtcs.rem.mtaos.cmd_preProcess.set_start(dataId=data_id_2))

# wait for background processes to finish
await asyncio.gather(select_sources_task, preproc_task_1, preproc_task_2)

# Process full array intra/extra focal images
await mtcs.rem.mtaos.cmd_runWEP.set_start(
    intraId=data_id_1, extraId=data_id_2
)

# issue corrections to the components
await mtcs.rem.mtaos.cmd_issueCorrections.start()

In the code above we used the already existing functionality of the MTCS and ComCam classes. Note that the process would be similar if we where to use LSSTCam instead of ComCam, simply replacing the ComCam class by the equivalent when that becomes available. This means, SAL Scripts can be written for ComCam in a way that will be reusable for the main camera.

1.6   User-provided optical aberration¶

In some conditions it may be useful to allow users to specify optical aberrations to be introduced to the system, e.g., add a certain amount of comma to the system. The MTAOS can easily receive a list of Zernike coefficients, pass them through the Optical Feedback Control and compute the offsets and bending modes required.

The command would simply receive an array of wavefront errors and apply them to the system properly registering the correction internally.

import numpy as np

# Assuming the wavefront correction is an array of 19 Zernike coefficients
wf = np.zeros(19)

# Assuming ANSI indexes, wf[7] is vertical comma
# Adding 1mm of vertical comma
wf[7] = 1.

await mtaos.cmd_runOFC.set_start(wf = wf)

When the MTAOS is configured it will load appropriate configuration files for the OFC. During commissioning it is likely we will want to run the OFC with a different set of configurations. In order to allow quick turnaround, the command can accept an additional yaml string with overriding parameters for the currently loaded configuration.

For instance, one could truncate the sensitivity matrix so that a wavefront error correction is applied to a specific component (or components), e.g.;

import yaml

# switch off all corrections except m2 hexapod
# See https://github.com/lsst-ts/ts_ofc/blob/master/policy/zkAndDofIdxArraySet.yaml
ofc_config = {
  "dofIdx": {
      "m2Hex": [1, 1, 1, 1, 1],
      "camHex": [0, 0, 0, 0, 0],
      "m1m3Bend": [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
      "m2Bend": [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
    }
}

# convert dictionary to yaml string
config = yaml.safe_dump(ofc_config)

await mtaos.cmd_runOFC.set_start(wf = wf, config = config)

Similarly, the user can manipulate the configuration for Camera hexapod, M2 and M1M3. Furthermore, this gives users the capability of customizing the configuration of the OFC on the fly, without the need to recycle the CSC state and the need for several different configurations. By relying on a yaml string to parse the configuration it is also possible to expand the feature as needed without the need to update the xml interface, which considerably simplify the redeployment cycle.

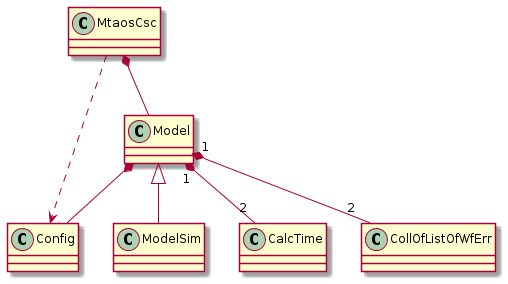

2.1   Updates to the Model class¶

The Model class has two main attributes it uses to perform the wavefront estimation (WEP) and to convert the output to optical corrections (OFC).

The wep attribute (and its uses) is probably the one that will require the most work. First, we have to keep in mind that the wep will have two modes of operation; local and remote.

The local mode will be used for the closed loop, e.g., analysis of the corner wavefront sensors for the main camera. Whereas, remote mode will be used (mostly) for full focal plane analysis (specially for LSSTCam).

Although ComCam data could be analyzed in local mode, it is probably useful to allow users to select if they want ComCam to be processes locally or remotely. This would allow us to test both use cases early on.

With respect to the ofc attribute, there is little that needs to be done. The attribute should remain in the Model class and should continue to be used as is. Most of what this class does, once configured with the correct instrument setup, is to receive a list of wavefront errors and convert them to corrections for each of the optical components. Some updates to the Model class will have to be implemented to support the 1.6   User-provided optical aberration feature, but should be straightforward to implement.

Fortunately, the use of wep and ofc is well abstracted in the Model class, being restricted to some specific methods that are called by the CSC.
